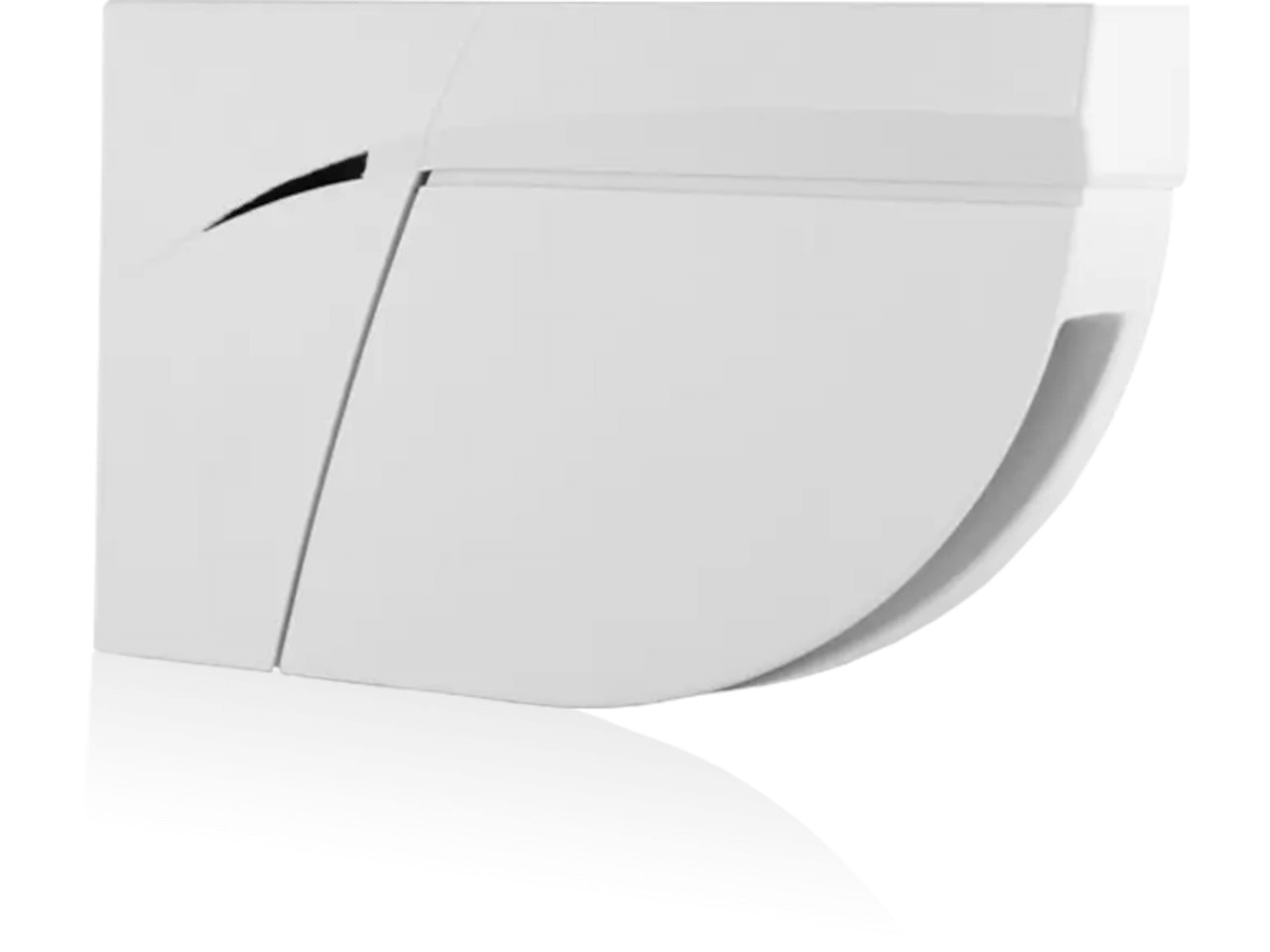

Safety sensor for doors and windows, set contains 2 x Laser-Scanner (left- and right-hand installation), complete monitoring of the detection zone (70 laser points) and the pinch zone (100 laser points), max. range 4m
Description:

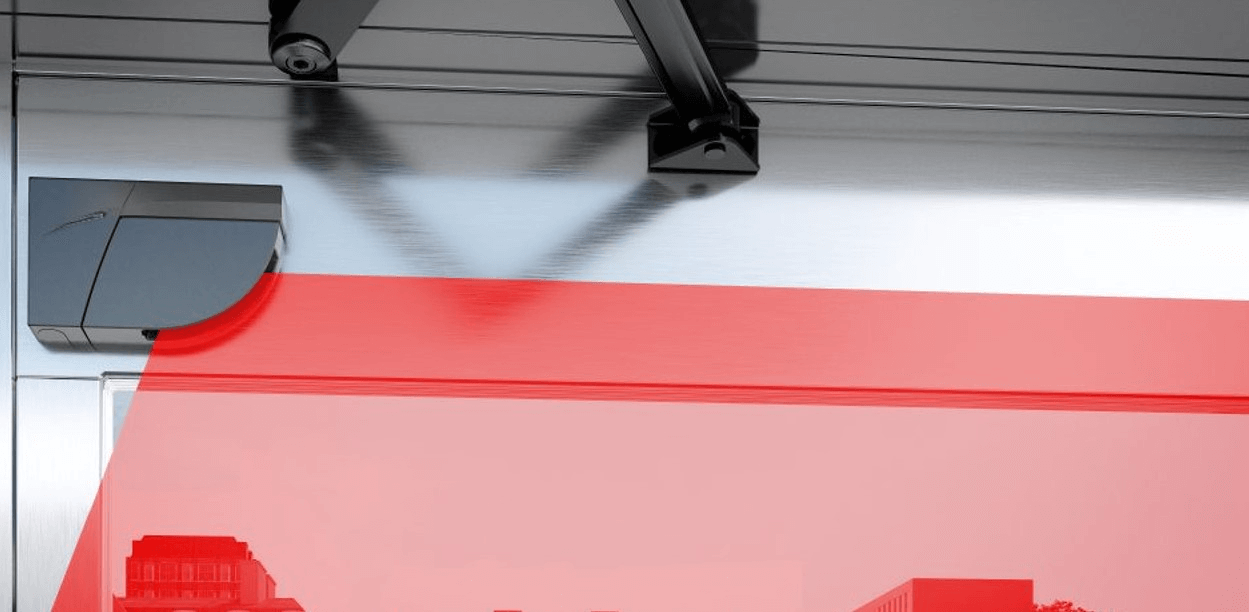

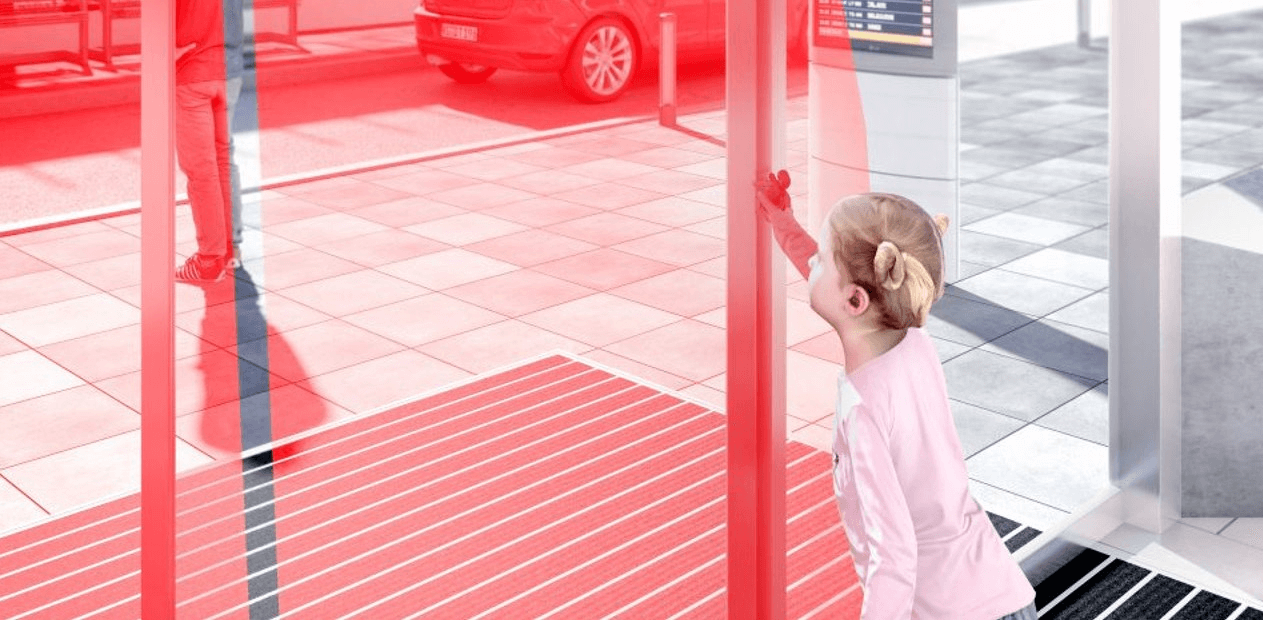

The BEA LZR® FLATSCAN SW uses laser technology time-of-flight measurement) to monitor automatic swing doors. Full protection of the doors is guaranteed by 170 measurement points. One single FLATSCAN SW Module is enough to secure the entire door wing as well as the hinge and the area directly to the side of the closing edge.
The LZR FLATSCAN can be used for monitoring as a pair (e.g. in swing doors), or as a single sensor (e.g. in windows).
Properties:
- Maximum detection range of 4m (diagonal) with reflectivity of 2% (i.e. at 1.5m -> max. H = 3.7 m).
- Possible monitoring of the closing edge
- Compact design (8.5 cm x 14.2 cm), can be integrated into any door
- Works with all floor types ((slatted floors, wire mesh, absorbent carpets, reflective flooring, slippery surfaces, etc.) and with the doors' surroundings (handrails, walls, radiators, dustbins, etc).
- One module per side is enough to secure the door wings as well as its hinges.
- Useable as a pair (i.e. for doors) or on its own (i.e. for windows).
| Cable Length: | 2.5 m |
|---|---|
| Connection Type: | Cable, w/o plug |
| Function: | Safety Sensor |
| Material: | PC/ASA |
| Max. Operating Temperature: | +60 °C |
| Min. Operating Temperature: | -30 °C |
| Output: | 2x Solid-state relay |
| Protection Class: | IP 54 |
| Supply Voltage: | DC 12-24 V |
| max. Installation Height: | 4.0 m |
| max. Switching Current: | 100 mA |
